The first “Targa by Sheaffer” was introduced into the line up of Sheaffer pens in 1976, orginally in the Classic size only.

TARGA by SHEAFFER-CLASSIC.

Listed below are five different version of the “Targa by Sheaffer” in the Classic size.

The components of the Classic cap are basically the same throughout the five versions. Some models like “The Masterpiece” and “Fred Force 10” use a solid ornament and the version three models use a heavier cap plug; a few version one models like the “1020 Imperial Brass” are fitted with the same cap plug. These pens can be identified by the gold disc on the cap top.

The main difference between the versions can be found in the pens barrel. Version one uses a plastic barrel liner and liner plug that is visible at the end of the barrel.

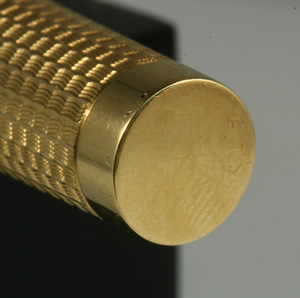

 Version two “The Masterpiece” is fitted with a solid ornament on the cap which sits flush to the cap shell. The barrel has a plastic barrel liner like version one, but the barrel is solid at the end.

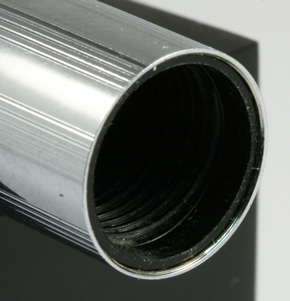

On version three a metal bushing is used on the barrel, a smaller barrel liner is fitted with the liner plug still being used at the end of the barrel. The extra weight of the barrel bushing and the heavier version of the cap gives these Targa’s have a very solid feel.

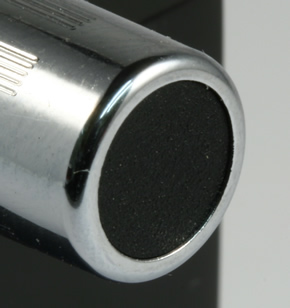

 The barrel on version four is given extra length by fitting a metal barrel plug to the end; a shiny black disc is inserted into the plug. This plug also acts as protection for the barrels finish while adding a little extra weight.

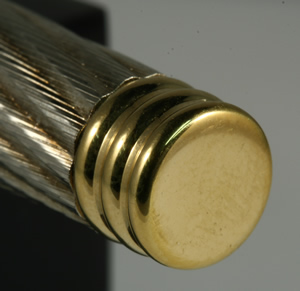

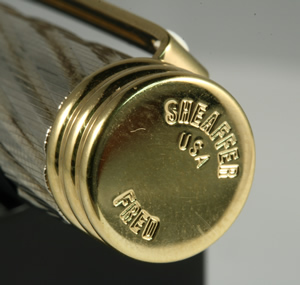

Version five “Fred Force 10” uses a unique metal barrel plug and ornament, coupled with heavy gauge body the “Fred” is the heaviest version of the Targa available.

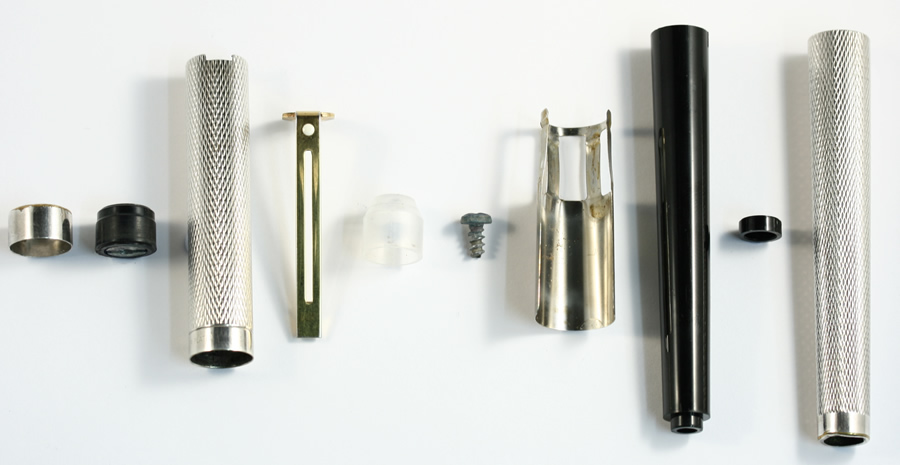

PARTS OF A CLASSIC SHEAFFER TARGA- VERSION ONE.

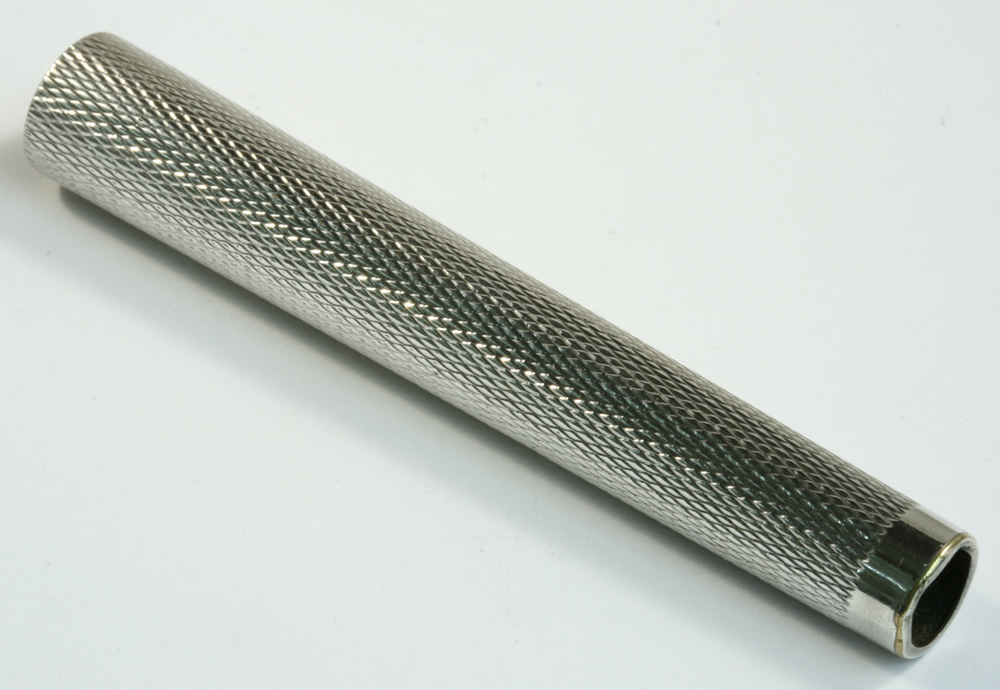

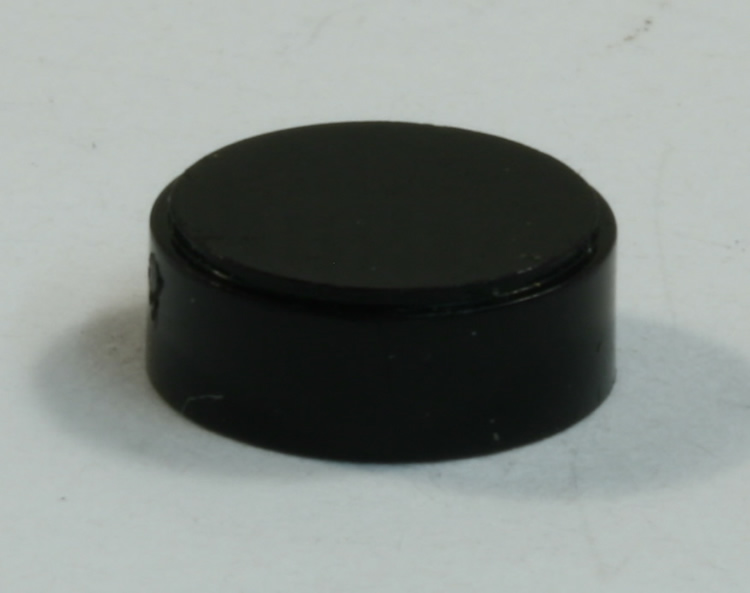

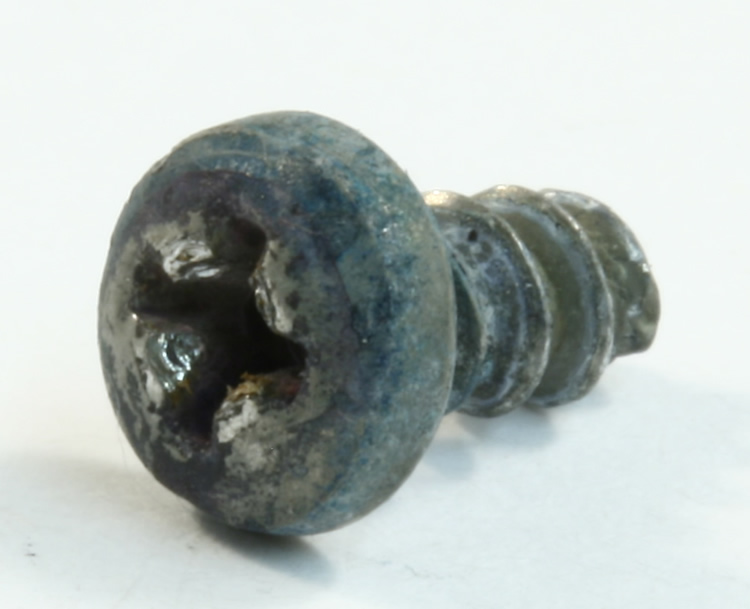

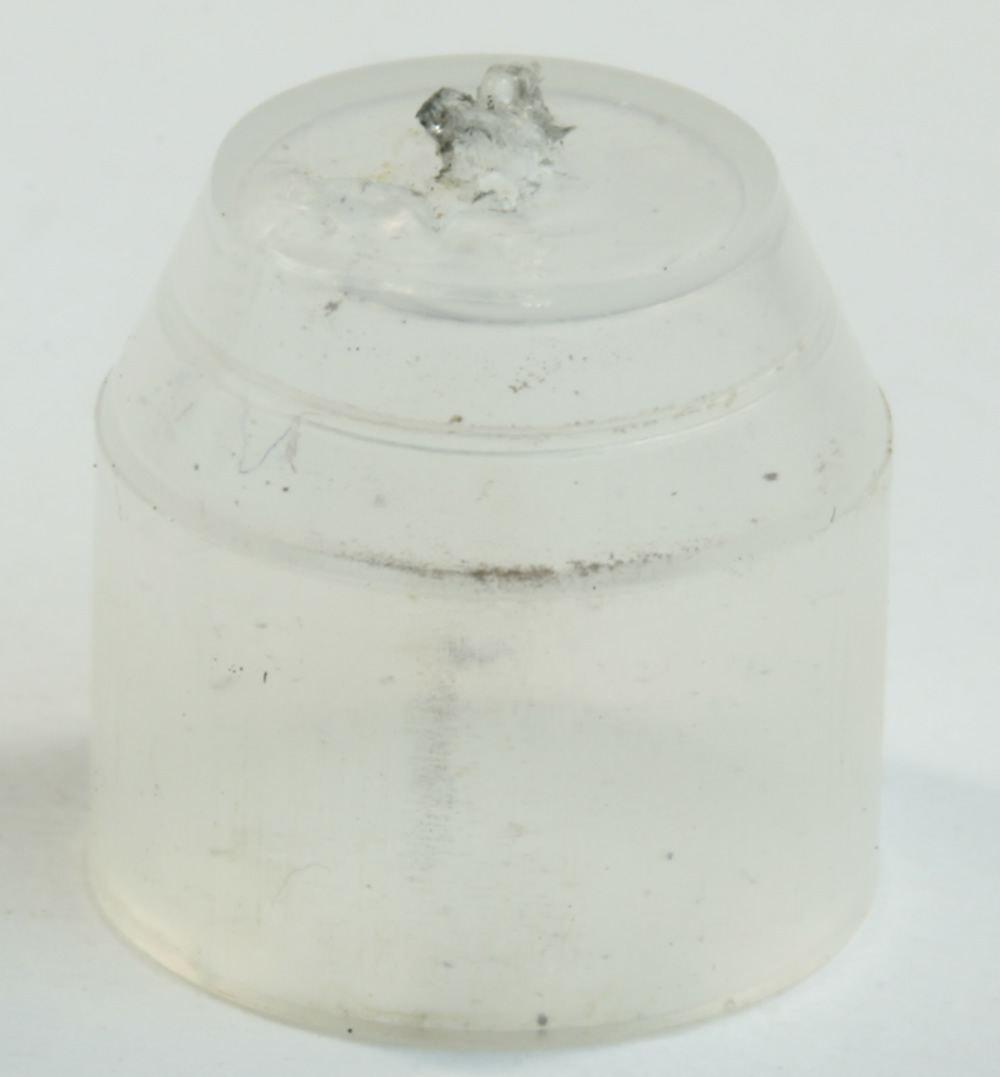

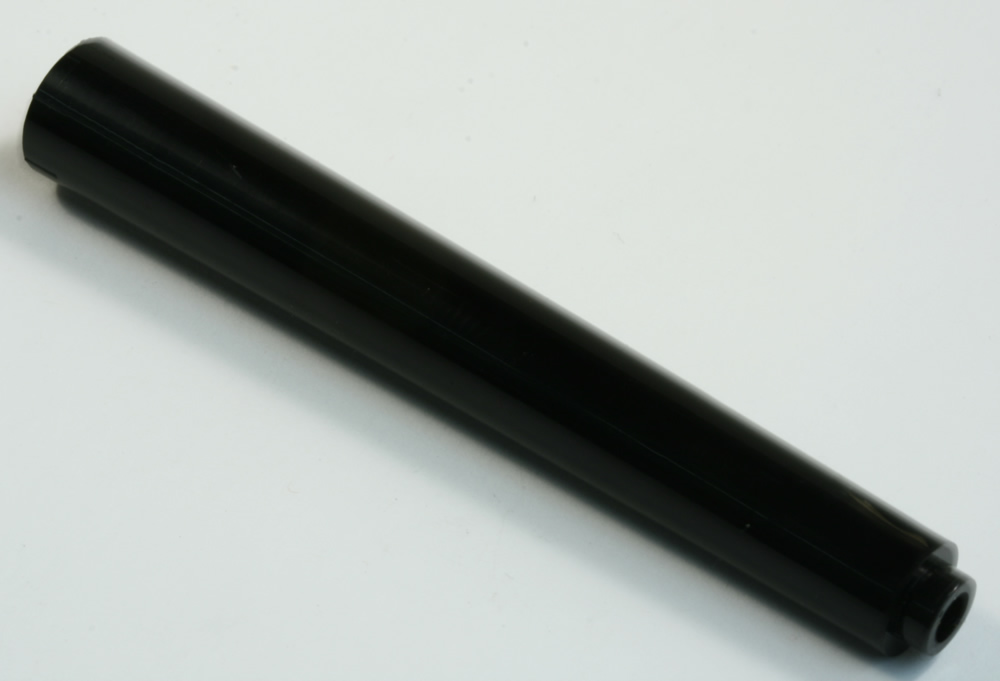

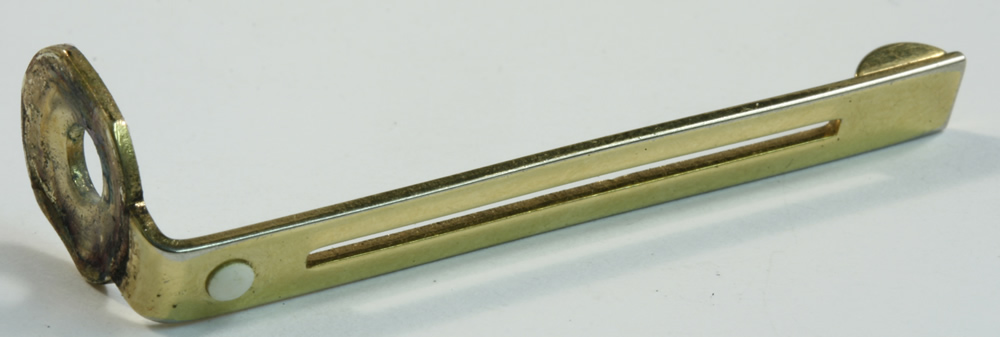

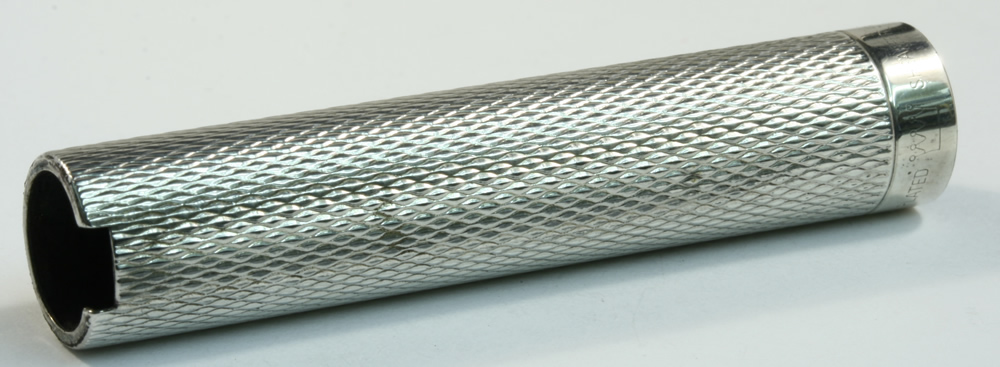

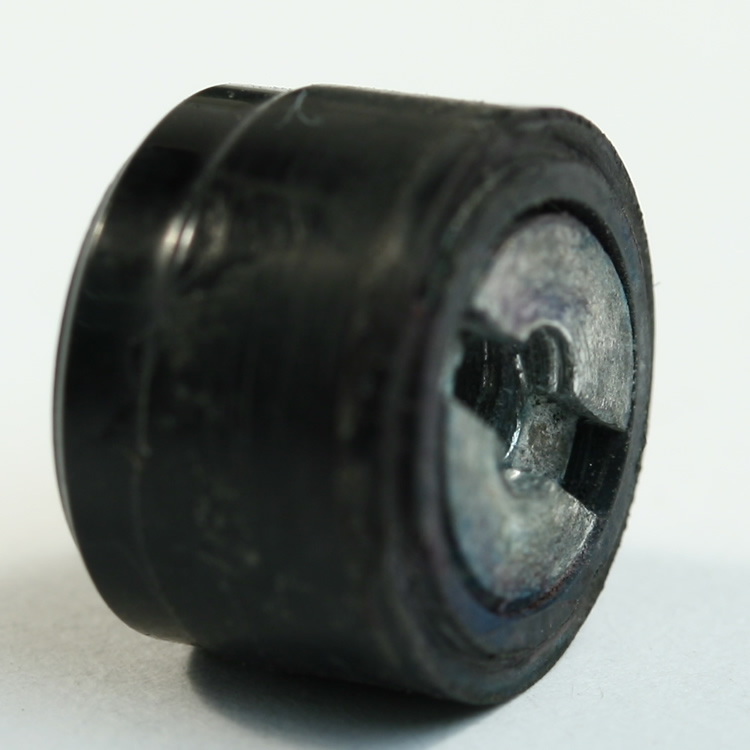

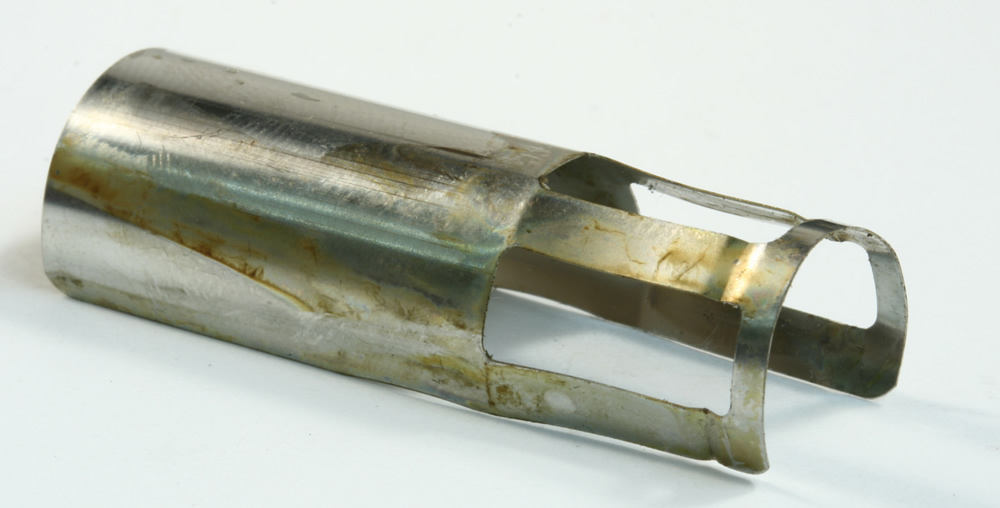

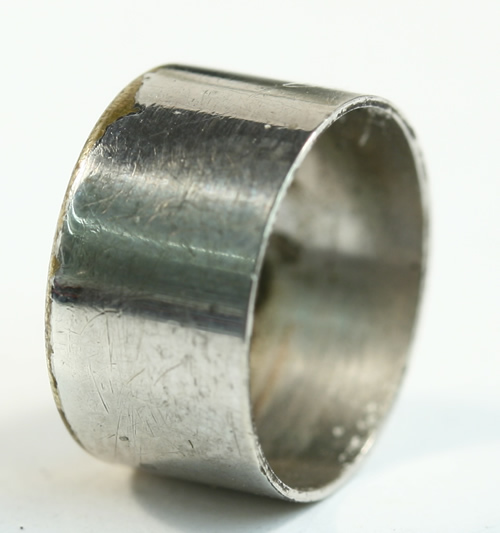

ORNAMENT	PLUG	CAP SHELL	CLIP	CAP-LINER	SCREW	RETAINING SPRING	BARREL LINER	LINER PLUG	BARREL SHELL

-

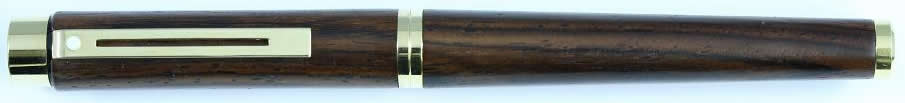

SHEAFFER TARGA VERSION 1 - WOOD 1050 PALISSANDRE DE RIO VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - WOOD SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 22g LENGTH OF PEN - POSTED - 156mm LENGTH OF PEN - CAPPED - 135mm DIAMETER OF PEN - 12mm CAP - LENGTH-61mm ~ WEIGHT- 11g BARREL - LENTGH-74mm ~ WEIGHT- 4g LIST OF SHEAFFER TARGA VERSION 1 IN WOOD. 1050 PALISSANDRE DE RIO.

-

SHEAFFER TARGA VERSION 1 - SILVER 1004X STERLING SILVER LINED PATTERN VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - SILVER SIZE - CLASSIC WEIGHT - 27g LENGTH OF PEN-POSTED - 150mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN IN CENTRE - 11mm CAP - LENGTH-61mm ~ WEIGHT- 11g BARREL - LENGTH-74mm ~ WEIGHT- 9g LIST OF SHEAFFER TARGA VERSION 1 IN SILVER. 1004,1004X,1006,1006,1024,1024S,1024X,1026,1026S,1026X.

SHEAFFER TARGA VERSION 1 - GOLD AND SILVER PLATE 1009 GOLD PLATE BARLEYCORN PATTERN VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - GOLD PLATE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 24g LENGTH OF PEN-POSTED - 150mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-9g BARREL - LENGTH-74mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN GOLD AND SILVER PLATE. 1005,1007,1008,1009,1010,1011,1012,1013,1014,1024XG,1065,1084.

SHEAFFER TARGA VERSION - BLACK LAQUE & BRASS 676 FEATHER VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - GOLD PLATE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 28g LENGTH OF PEN-POSTED - 154mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-13g BARREL - LENGTH-74mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN BRASS AND LAQUE 675,676,679,682,683,684.

SHEAFFER TARGA VERSION 1 - LAQUE 1028 LAQUE GREY RONCE VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - LAQUE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 25g LENGTH OF PEN - POSTED - 150mm LENGTH OF PEN - CAPPED - 134mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-73mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN LAQUE 1021,1022,1027,1028 Bordeaux,1028 Marble Grey,1029,1030,1032,1034,1035,1036,1038,1040,1041,1043,1044.1046,1080,1081,1082,1083 1st Edition,1180,1181,1182,1183.

SHEAFFER TARGA VERSION 1 - BRASS 1020 IMPERIAL BRASS VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - BRASS SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 29g LENGTH OF PEN - POSTED - 150mm LENGTH OF PEN - CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-14g BARREL - LENGTH-74mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN BRASS 1020.

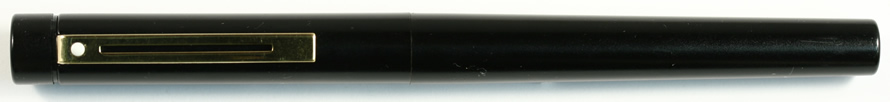

SHEAFFER TARGA VERSION 1 - MATTE 1003 MATTE BLACK 1st EDITION VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - MATTE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 25g LENGTH OF PEN-POSTED - 150mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-11g BARREL - LENGTH-74mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN MATTE 1003.

SHEAFFER TARGA VERSION 1 - CHROME 1000 BRIGHT CHROME VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - CHROME SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 25g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-74mm ~ WEIGHT-8g LIST OF SHEAFFER TARGA VERSION 1 IN CHROME 1000,1000X,1000XG.

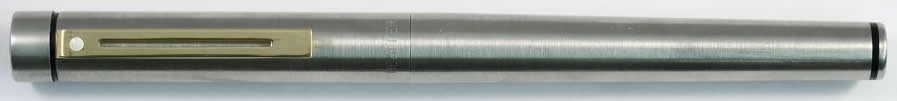

SHEAFFER TARGA VERSION 1 - STAINLESS STEEL 1001XG STAINLESS STEEL 1st EDITION VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - STAINLESS STEEL SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 21g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-8g BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 1 IN STAINLESS STEEL 1001 1st Edition,1001X,1001XG 1st Edition.

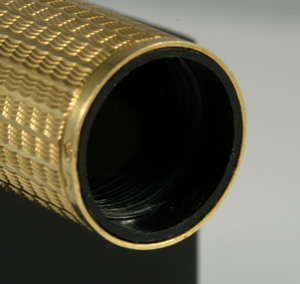

SHEAFFER TARGA VERSION 2- SOLID GOLD 1097 MASTERPIECE VANNERIE PATTERN VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - 18K SOLID GOLD SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 34g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN - 11mm CAP - LENGTH-63mm ~ WEIGHT-16g BARREL - LENGTH-74mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 2 IN SOLID GOLD 1095 MILLERAIES,1097 VANNERIE.

SHEAFFER TARGA VERSION 3 LEATHER LOOK VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - LEATHER LOOK SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 32g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-14g BARREL - LENGTH-74mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 3 IN LEATHER LOOK LEATHER LOOK

SHEAFFER TARGA VERSION 3 1003 MATTE BLACK 1st EDITION VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - MATTE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 32g LENGTH OF PEN-POSTED - 151mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-14g BARREL - LENGTH-74mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 3 IN MATTE 1002 1st Edition,1003 1st Edition,1054 1st Edition, 1055 1st Edition,1055 2nd Edition.

SHEAFFER TARGA VERSION 4 1086 LAQUE GREEN MOIRE VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - LAQUE SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 26g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-9g BARREL - LENGTH-76mm ~ WEIGHT-10g LIST OF SHEAFFER TARGA VERSION 4 IN LAQUE 1083 2nd Edition,1085,1086,1087.

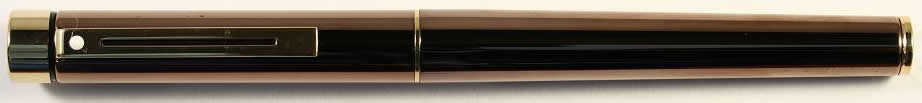

SHEAFFER TARGA VERSION 4 1068 METALLIC COPPER VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - METALLIC SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 28g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-76mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 4 IN METALLIC 1067,1068.

SHEAFFER TARGA VERSION 4 1059 GREEN GLOSS VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - GLOSS SIZE - CLASSIC WEIGHT OF PEN WITHOUT CONVERTOR FITTED - 28g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN IN CENTRE - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-76mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 4 IN GLOSS 1056,1057,1058,1059,1099,1184,1185,1186.

SHEAFFER TARGA VERSION 4 1003 MATTE BLACK 2nd EDITION VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - MATTE SIZE - CLASSIC WEIGHT - 28g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-76mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 4 IN MATTE 1002 2nd Edition,1003 2nd Edition,1054 2nd Edition,1062.

SHEAFFER TARGA VERSION 4 1001XG 2nd EDITION BRUSHED CHROME VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - BRUSHED CHROME SIZE - CLASSIC WEIGHT - 28g LENGTH OF PEN-POSTED - 155mm LENGTH OF PEN-CAPPED - 137mm DIAMETER OF PEN - 11mm CAP - LENGTH-61mm ~ WEIGHT-10g BARREL - LENGTH-76mm ~ WEIGHT-11g LIST OF SHEAFFER TARGA VERSION 4 IN CHROME 1001 2nd Edition, 1001XG 2nd Edition.

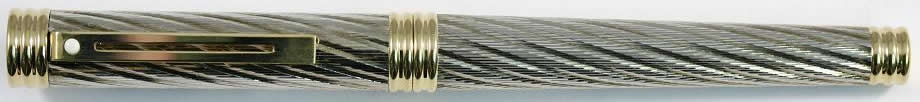

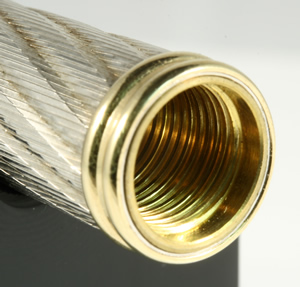

SHEAFFER TARGA VERSION 5 1090 FRED FORCE 10 VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - PALLADIUM PLATE SIZE - CLASSIC WEIGHT - 40g LENGTH OF PEN WHEN POSTED - 151mm LENGTH OF PEN WHEN CAPPED - 137mm DIAMETER OF PEN IN CENTRE - 11mm LENGTH OF CAP - LENGTH-61mm ~ WEIGHT-14g LENGTH OF BARREL - LENGTH-76mm ~ WEIGHT-19g LIST OF SHEAFFER TARGA VERSION 5 IN PALLADIUM PLATE 1090 FRED.

The Slimline pens were intoduced into the Targa range in 1982. TARGA by SHEAFFER-SLIMLINE. The slimline pens are made in two different versions, listed below as numbers six and seven. Like the Classic pens the slimline caps are made up with the same components in both versions and again some models have a heavier cap plug, which can be identified by the gold disc on the cap top. Both versions use a metal barrel bushing, with version six using a metal barrel plug on the end of the barrel, which again acts as protection for the finish on the barrel.

SHEAFFER TARGA VERSION 6 681s LAME VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - GOLD PLATE SIZE - SLIMLINE WEIGHT - 18g LENGTH OF PEN-POSTED - 148mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-8g BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 6 IN GOLD AND SILVER PLATE 680s,681s.

SHEAFFER TARGA VERSION 6 1028s LAQUE GREY RONCE VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - LAQUE SIZE - SLIMLINE WEIGHT - 17g LENGTH OF PEN-POSTED - 147mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-7g BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 6 IN LAQUE 1021s,1022s,1027s,1028s,1029s,1030s,1031s,1032s,1034s,1036s,1038s,1040s,1041s,1043s.

SHEAFFER TARGA VERSION 6 1020s IMPERIAL BRASS VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - BRASS SIZE - SLIMLINE WEIGHT - 19g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-9g BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 6 IN BRASS 1020s.

SHEAFFER TARGA VERSION 6 1050s Quicksilver VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - METALLIC SIZE - SLIMLINE WEIGHT - 17g LENGTH OF PEN-POSTED - 147mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-7g BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 6 IN METALLIC 1050s,1051s,1052s,1053s.

SHEAFFER TARGA VERSION 6 1003s 1st EDITION MATTE BLACK VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - MATTE SIZE - SLIMLINE WEIGHT - 20g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-9g BARREL - LENGTH-74mm ~ WEIGHT-7g LIST OF SHEAFFER TARGA VERSION 6 IN MATTE 1002s 1st Edition,1002s 2nd Edition, 1003s 1st Edition,1003s 2nd Edition,1062s.

SHEAFFER TARGA VERSION 6 1001XGs 2nd EDITION BRUSHED CHROME VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - CHROME SIZE - SLIMLINE WEIGHT - 17g LENGTH OF PEN WHEN POSTED - 145mm LENGTH OF PEN WHEN CAPPED - 135mm DIAMETER OF PEN IN CENTRE - 8mm LENGTH OF CAP - LENGTH-61mm ~ WEIGHT-7g LENGTH OF BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 6 IN CHROME 1001s 2nd Edition, 1001XGs 2nd Edition.

SHEAFFER TARGA VERSION 7 1024Xs FLUTED STERLING SILVER VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - SILVER SIZE - SLIMLINE WEIGHT - 16g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-7g BARREL - LENGTH-74mm ~ WEIGHT-5g LIST OF SHEAFFER TARGA VERSION 7 IN SILVER 1024s,1024Xs,1026s,1026Xs,1026Ss.

SHEAFFER TARGA VERSION 7 1009s GOLD PLATE BARLEYCORN PATTERN VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - GOLD PLATE SIZE - SLIMLINE WEIGHT - 16g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-7g BARREL - LENGTH-74mm ~ WEIGHT-5g LIST OF SHEAFFER TARGA VERSION 7 IN GOLD AND SILVER PLATE 1005s,1007s,1009s,1010s,1010Xs,1011s.

SHEAFFER TARGA VERSION 7 1039s JADE GREEN LAQUE VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - LAQUE SIZE - SLIMLINE WEIGHT - 17g LENGTH OF PEN WHEN POSTED - 144mm LENGTH OF PEN WHEN CAPPED - 133mm DIAMETER OF PEN IN CENTRE - 8mm LENGTH OF CAP - LENGTH-61mm ~ WEIGHT-7g LENGTH OF BARREL - LENGTH-72mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 7 IN LAQUE 1038s,1083s.

SHEAFFER TARGA VERSION 7 676s FEATHER VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - BRASS AND LAQUE SIZE - SLIMLINE WEIGHT - 19g LENGTH OF PEN WHEN POSTED - 145mm LENGTH OF PEN WHEN CAPPED - 135mm DIAMETER OF PEN IN CENTRE - 8mm LENGTH OF CAP - LENGTH-61mm ~ WEIGHT-9g LENGTH OF BARREL - LENGTH-74mm ~ WEIGHT-6g LIST OF SHEAFFER TARGA VERSION 7 IN BRASS AND LAQUE 675s,676s,677s,678s,679s,1019s.

SHEAFFER TARGA VERSION 7 1001XGs 1st EDITION BRUSHED STAINLESS STEEL G.T VIEW INSIDE BARREL END OF BARREL END OF CAP

FINISH - STEEL SIZE - SLIMLINE WEIGHT - 15g LENGTH OF PEN-POSTED - 145mm LENGTH OF PEN-CAPPED - 135mm DIAMETER OF PEN - 8mm CAP - LENGTH-61mm ~ WEIGHT-6g BARREL - LENGTH-74mm ~ WEIGHT-5g LIST OF SHEAFFER TARGA VERSION 7 IN STEEL 1001s 1st Edition,1001XGs 1st Edition,1001xxs,
